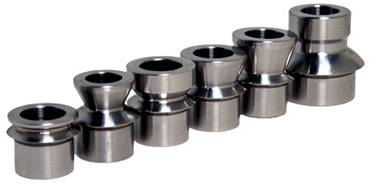

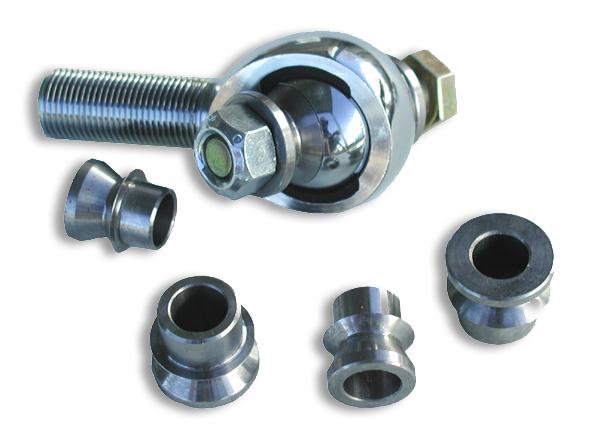

High Misalignment Spacers are used on rod-ends or spherical
bearings to gain more pivoting angle than standard spacers.
They also reduce the size of the hole to accommodate a smaller size bolt.
|
PART # |
SIZE O.D. ( D ) |
BOLT SIZE ( B) |
TALL (A) |
STACK HEIGHT 2*A+BALL |
FLAT SIZE |
BALL SIZE DIA |
PRICE XX |
|
051-1008B3 |
.625 |
1/2 |
.500 |
1.750 |
.875 |
1.125 |
|
|
|
|
|
|
|
|
|
|
|
051-1208C3 |
.750 |
1/2 |
.437 |
1.750 |
1.00 |
1.31 |
|
|
051-1208C3.5 |
.750 |
1/2 |
.469 |
1.813 |
1.00 |
1.31 |
|
|
051-1208C4 |
.750 |
1/2 |
.500 |
1.875 |
1.00 |
1.31 |
|
|
051-1208C5 |
.750 |
1/2 |
.563 |
2.000 |
1.00 |
1.31 |
|
|
|
|
|
|
|
|
|
|
|
051-1210C3 |
.750 |
5/8 |
.437 |
1.750 |
1.00 |
1.31 |
|
|
051-1210C4 |
.750 |
5/8 |
.500 |
1.875 |
1.00 |
1.31 |
|
|
051-1210C5 |
.750 |
5/8 |
.563 |
2.000 |
1.00 |
1.31 |
|
|
|
|
|
|
|
|
|
|
|
051-1410E2 |
.875 |
5/8 |
.625 |
2.125 |
1.125 |
1.375 |
|
|
051-1410E3 |
.875 |
5/8 |
.687 |
2.250 |
1.125 |
1.375 |
|
|
051-1410E5 |
.875 |
5/8 |
.813 |
2.500 |
1.125 |
1.375 |
|
|
051-1410E6 |
.875 |
5/8 |
.875 |
2.625 |
1.125 |
1.375 |
|
|
051-1410E7 |
.875 |
5/8 |
.938 |
2.750 |
1.125 |
1.375 |
|
|
051-1410E9 |
.875 |
5/8 |
1.063 |
3.000 |
1.125 |
1.375 |
|
|
|
|
|
|
|
|
|
|
|
051-1610G3 |
1.0 |
5/8 |
.750 |
2.500 |
1.25 |
1.687 |
|
|
051-1610G5 |
1.0 |
5/8 |
1.00 |
3.000 |
1.25 |
1.687 |
|
|
051-1612G3 |
1.0 |
3/4 |
.750 |
2.500 |
1.25 |
1.687 |
|
|
051-1612G5 |
1.0 |
3/4 |
1.25 |
3.000 |
1.25 |
1.687 |
|
|
|
|
|
|
|
|
|
|
|
051-1610H3 |
1.0 |
5/8 |
.563 |
2.500 |
1.25 |
1.875 |
|
|
051-1610H3.5 |
1.0 |
5/8 |
.625 |
2.625 |
1.25 |
1.875 |
|
|
051-1610H4 |
1.0 |
5/8 |
.688 |
2.750 |
1.25 |
1.875 |
|
|
051-1610H5 |
1.0 |
5/8 |
.813 |
3.000 |
1.25 |
1.875 |
|
|
|
|
|
|
|
|
|
|
|
051-1612H3 |
1.0 |
3/4 |
.563 |
2.500 |
1.25 |
1.875 |
|
|
051-1612H3.5 |
1.0 |
3/4 |
.625 |
2.625 |
1.25 |
1.875 |
|
|
051-1612H4 |
1.0 |
3/4 |
.688 |
2.750 |
1.25 |
1.875 |
|
|
051-1612H5 |
1.0 |
3/4 |
.813 |
3.000 |
1.25 |
1.875 |
|
|
|
|
|
|
|
|
|
|
|
051-2012J3 |
1.25 |
3/4 |
.906 |
3.000 |
1.63 |
2.00 |
|
|
|
|
|
|
|
|
|
|
|
051-2412L4 |
1.50 |
3/4 |
0.813 |
3.00 |
|
2.312 |
|
|
051-2412L8 |
1.50 |
3/4 |
1.313 |
4.00 |
|
2.312 |
|
